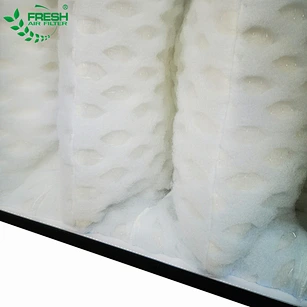

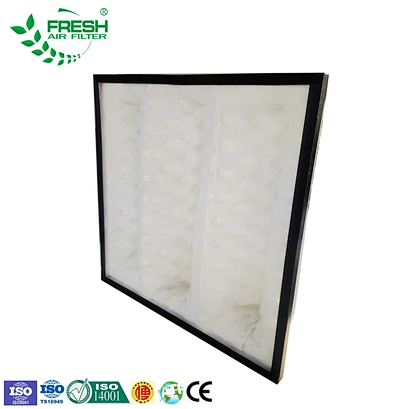

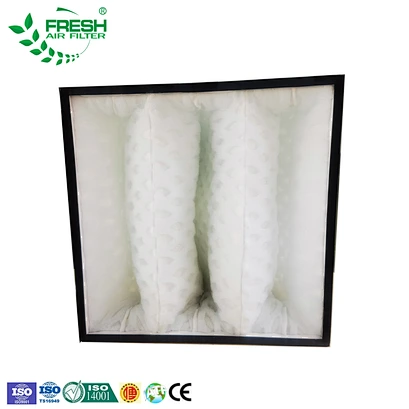

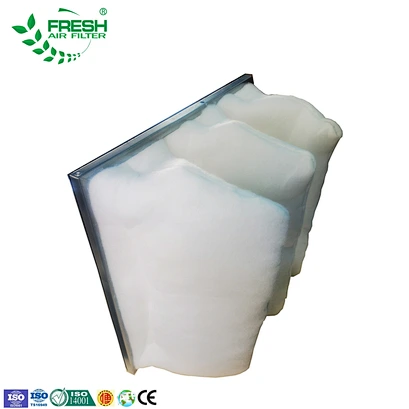

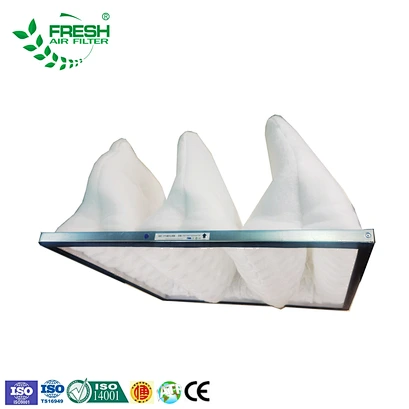

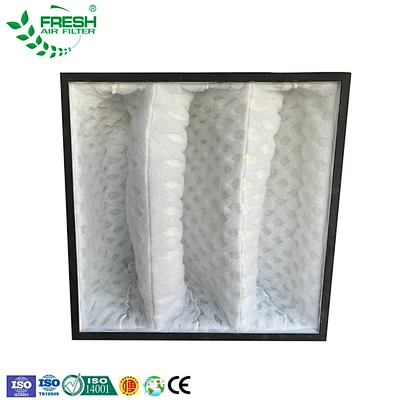

DPA Paint Pocket Filter
DPA Pocket Air Filter for Spray and Painting Booth
Feature:
1) High dust holding capacity.
2) Long service life.
3) Good resistance to moisture.

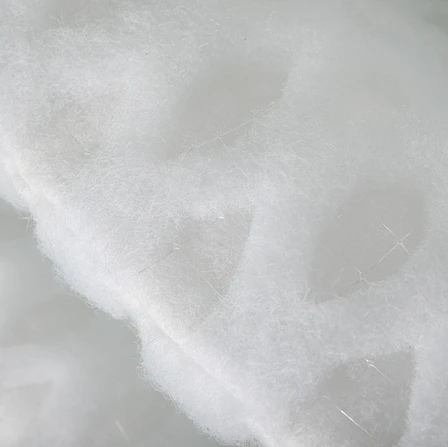

4) Its raw material is diamond-shape paint mist filter cotton, can reduce replacement times of paint filter.
5) With better performance of painting-collection than other general paint mist filter.
6) There are galvanized steel frame, aluminum frame, stainless steel frame for your option.
Application:
1) Exhaust gas filtering and paint mist collection in spray booth exhaust system.
2) Dust removal in painting equipment, equipment, painting system and painting workshop.
3) Pre-filtering for paint mist and oil mist type exhaust gas purification device.
Normal Size:
| Model | Dimension | Number of Pockets | Blowing Rate/ Initial Pressure Drop (m3/h/Pa) | |||
| H(mm) | W(mm) | D(mm) | ||||
| FRS-DPA | 592 | 592 | 600 | 6 | 3400/40 | 4200/60 |
| 287 | 592 | 600 | 3 | 1700/40 | 2100/60 | |
| Remark: Other specifications can be customized | ||||||
Technical Parameters:
* Ashrae 52.1-1992 : 90%
* Frame : Aluminum Alloy or Stainless Steel
* Temp. Resistance: Below100 Celsius
* Filter Object : Particles Bigger Than 1 Micron
* Humidity : ≤ 100%Rh
* Arrestance ： 90% Down to 10 Microns
* OEM Service : Acceptable
* Color: White
* Certification : ISO9001, ISO/TS 16949
* H.S CODE: 8421999090
