H13 HEPA Low Noise Fan Filter Unit (FFU)
FRS-FFUTS2*4S-1
Fan Filter Units (FFU) are the most energy efficient fan filter units on the market today. Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities and laboratories, the FFU delivers high volumes of HEPA/ULPA filter air at low sound levels.
Quantity
H13 HEPA Low Noise Fan Filter Unit (FFU)
Applications:
Fan Filter Units (FFU) are the most energy efficient fan filter units on the market today. Designed specifically for use in cleanrooms, pharmacies, pharmaceutical manufacturing facilities and laboratories, the FFU delivers high volumes of HEPA/ULPA filter air at low sound levels.
Feature:
1) Low power consumption, low operation cost, wind speed adjustable.
2) Special wind tunnel design and well distributed air flow, noise proof
3) Light weight design, sleeve type installation, easy installation and maintenance.
Arameters:
Housing Material : Galvanized steel
Housing Size: 1175*575*320mm
Power Supply : AC220V 50 Hz
Power input: 150~190W
Air Velocity : 0.35-0.5 m/s
Noise Level (dBA) : 0.25~0.45m/sec,48~55d BA
Fan Runner: Airfoil Turbo Fan Runner
Filter Frame : Aluminum profile
Filter Resistance: ≤ 140Pa
Filter Size: 1170*570*69mm
Filtration Efficiency: H13 (EN1822)
Airflow rate : 1800 m3/h
Initial pressure: 125Pa
Brand : FRESH
Product H.S Code: 8428101090
Products Attention
1. Please make sure the power supply conforms to the requirement of the products before operation
2. Please make sure the products have been positioned at firm bracket, (the pre-filter) and HEPA filter have been installed.
3.The item has specific standing area, so please stand the area when maintenance is on going, don't stand other area, it would lead to unpredictable results.
Tips before use
1. Do not insert foreign objects into the air inlet of the FFU to avoid damage to the motor.
2. Do not operate the FFU with wet hands, otherwise it may casue electric shock accidents.
3. Ensure the air flow smooth to the FFU.
4. Whether the external power supply of the unit is connected and the power supply must be proper.
5. Any FFU body earth protection connected?
6. Please make sure whether the air suction port above the body and the protective film of the lower filter have been removed or not.

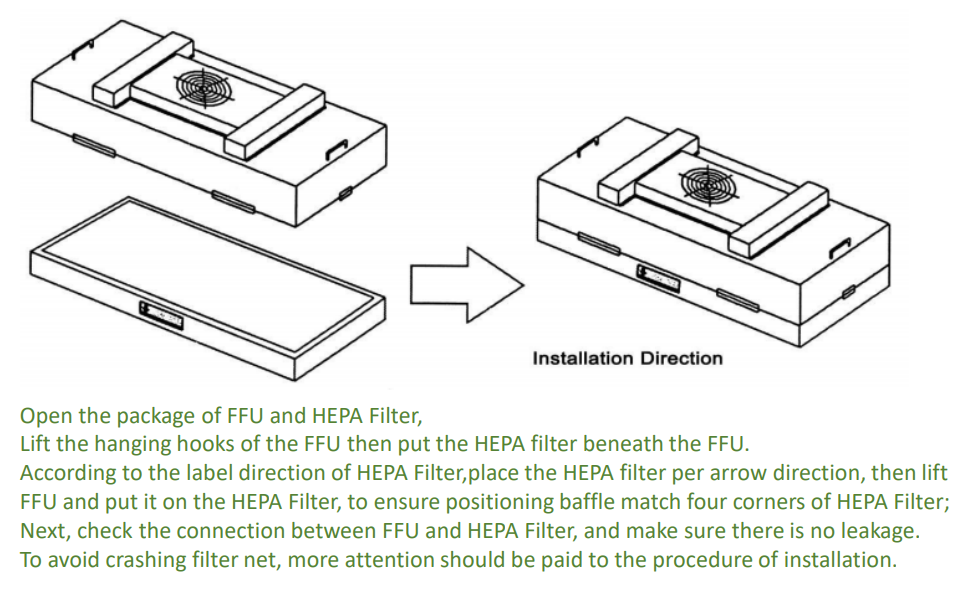

Installation of HEPA filter
