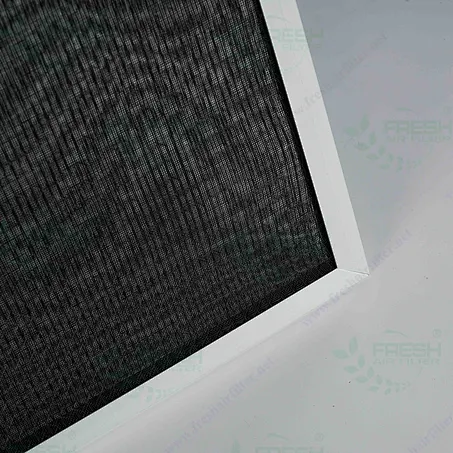

Monofilament Woven Nylon Mesh Panel Filter
FRS-NL-46

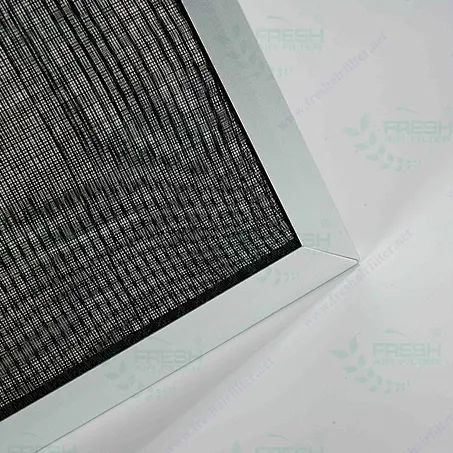

Acid/ Alkali Resistible Nylon Mesh Pre-Filter for Air Conditioning
Quantity
Monofilament Woven Nylon Mesh Panel Filter
Advantage:
* Acid/Alkali resistible
* Washable
* High airflow rate and low airflow resistance
* High temp resistible and damp-proof
Applications:
Pre-filter and foreign material filtration ,commercial and industrial ventilation systems
1) Used for clean room conditioning system, pre-filtration through fresh air venting units, and exterior air conditioning connection.
2) The pre-filtration of central air-conditioning system and clean room air inlet pre-filtration.
3) Pre-filtration at the inlet of Air purification equipment
4) Air conditioning airflow distribution filtration.
5) Primary filtration in a filtration system
* Acid/Alkali resistible
* Washable
* High airflow rate and low airflow resistance
* High temp resistible and damp-proof
Applications:
Pre-filter and foreign material filtration ,commercial and industrial ventilation systems
1) Used for clean room conditioning system, pre-filtration through fresh air venting units, and exterior air conditioning connection.
2) The pre-filtration of central air-conditioning system and clean room air inlet pre-filtration.
3) Pre-filtration at the inlet of Air purification equipment
4) Air conditioning airflow distribution filtration.
5) Primary filtration in a filtration system
Material and Features:
1) Filter media :PP,PA,PE and other materials for monofilament woven nylon mesh
2) Inner support frame : galvanized steel and stainless steel wire
3) Frame: Aluminum Alloy frame/stainless steel frame/non-woven fabric wrapping
4) Large ventilation capacity. Low airflow resistance, washable, reusable, long life span in humid working condition.
5) Certain corrosion resistance to general solvent, weak acid and weak alkali, to avoid prolonged exposure to ultraviolet light from the sun.
Technical parameters:
Filter object : more than 10μm pre-filtration of particles.
Wet tolerance (relative humidity ):less than 100%rh
Temperature :less than or equal to 100 Celsius.
Instantaneous temperature :less than or equal to 120 Celsius.
Specification :
| Model | Dimensions | Rates Air Velocity (m/s) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) | ||
| H(mm) | W(mm) | T(mm) | ||||
| FRS-NL-7 | 595 | 595 | 7 | 2 | 2500 | ≤50 |
| FRS-NL-10 | 595 | 595 | 10 | |||
| FRS-NL-15 | 595 | 595 | 15 | |||
| FRS-NL-21 | 595 | 595 | 21 | |||
| FRS-NL-25 | 595 | 595 | 25 | |||
| FRS-NL-46 | 595 | 595 | 46 | |||
Remark: other specifications can be customized | ||||||
