V-Bank HEPA air filter

Feature:

1) Engineered to meet the exacting requirements of precision manufacturing operations and laboratories.

2) Low airflow resistance and high efficiency.

3) Fills the gap between ASHRAE grade high-efficiency filters and high efficiency HEPA filters.

4) Each filter has pass scanning test.

5) Expanded filtration area.

6) Pass leakage tested, qulity assured.

7) With assembly flange, easy for installation, adaptable with pocket filter.

Application:

Commercial and industrial ventilation systems, intermediate or end filter of air conditioning systems

1. Intermediate or end filter of air conditioning systems of dust-free room fresh air conditioning system

2. Large air flow requirement or limited space of installing ventilation system.

3. Widely applied in electronics, optics, semiconductors, coating, chemical, cosmetics, pharmacy, hospitals, Food and Beverage, Schools & Universities and automobile industries.


Material :

Media Type:  (Standard) : Ultra-thin glass fiber filter paper

                      (Optional) : Artificial fiber filter paper

Separator Style: Hot Melt

Outer Frame Material: (Standard) : Plastic frame

                                     (Optional) : Aluminum alloy / galvanized steel / stainless steel frame

Sealant Glue : AB two component glue

Gasket Material: Foamed EVA

Antimicrobial Available: No

Technical Parameters:

Filtration Grade: EN1822: E10、E11、E12、H13、H14

Porosity: Particles ≥0.5μm、≥0.3μm

Efficiency: 65%、85%、95%、99%、99.9%、99.99%、99.999%（ASHRAE52.1-1992）

Humidity: ≤100%RH

Max. Operating Temperature: ≤80℃

Instantaneous temperature resistance: ≤100℃

Recomm. Final Resistance: ≤600PA

Normal Size:

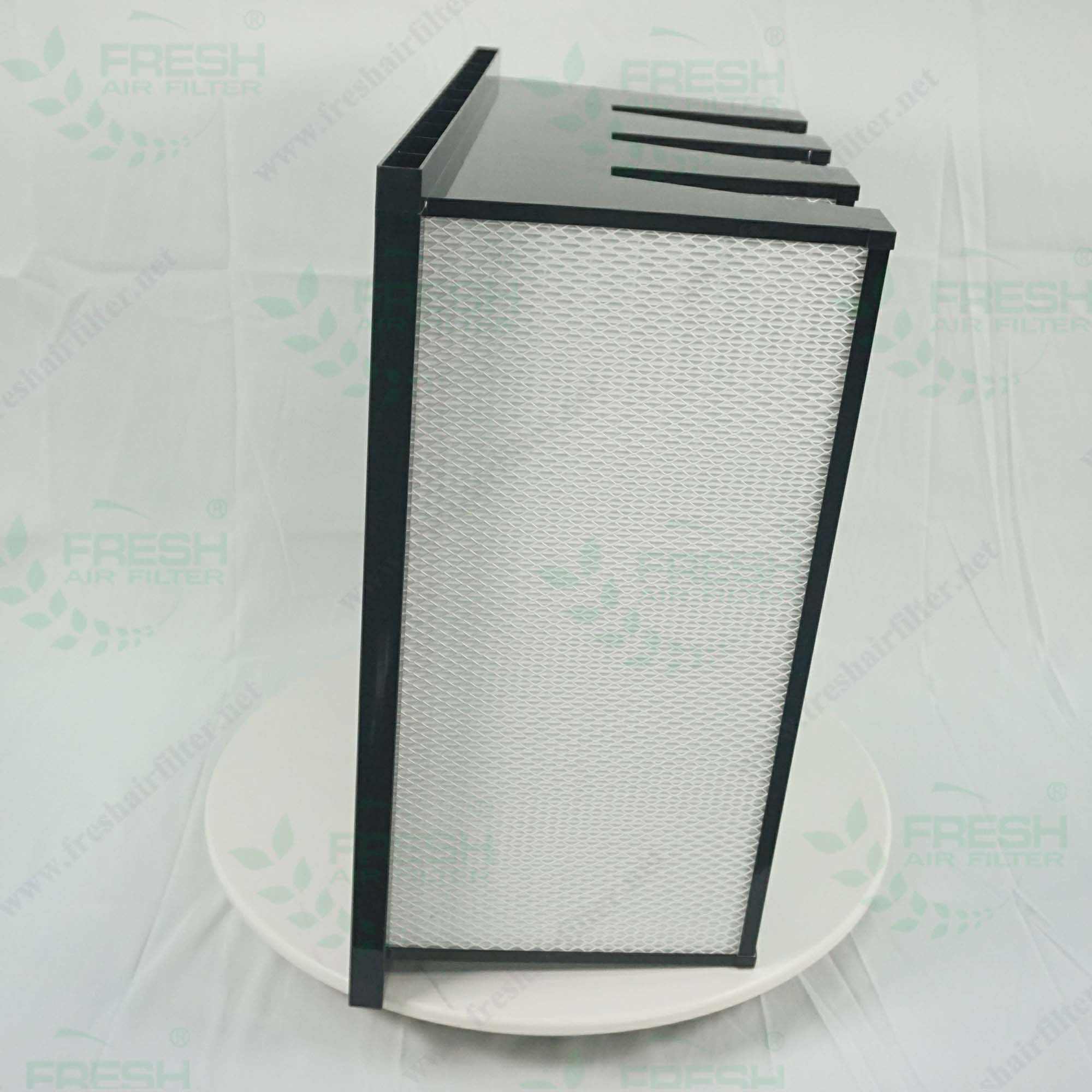

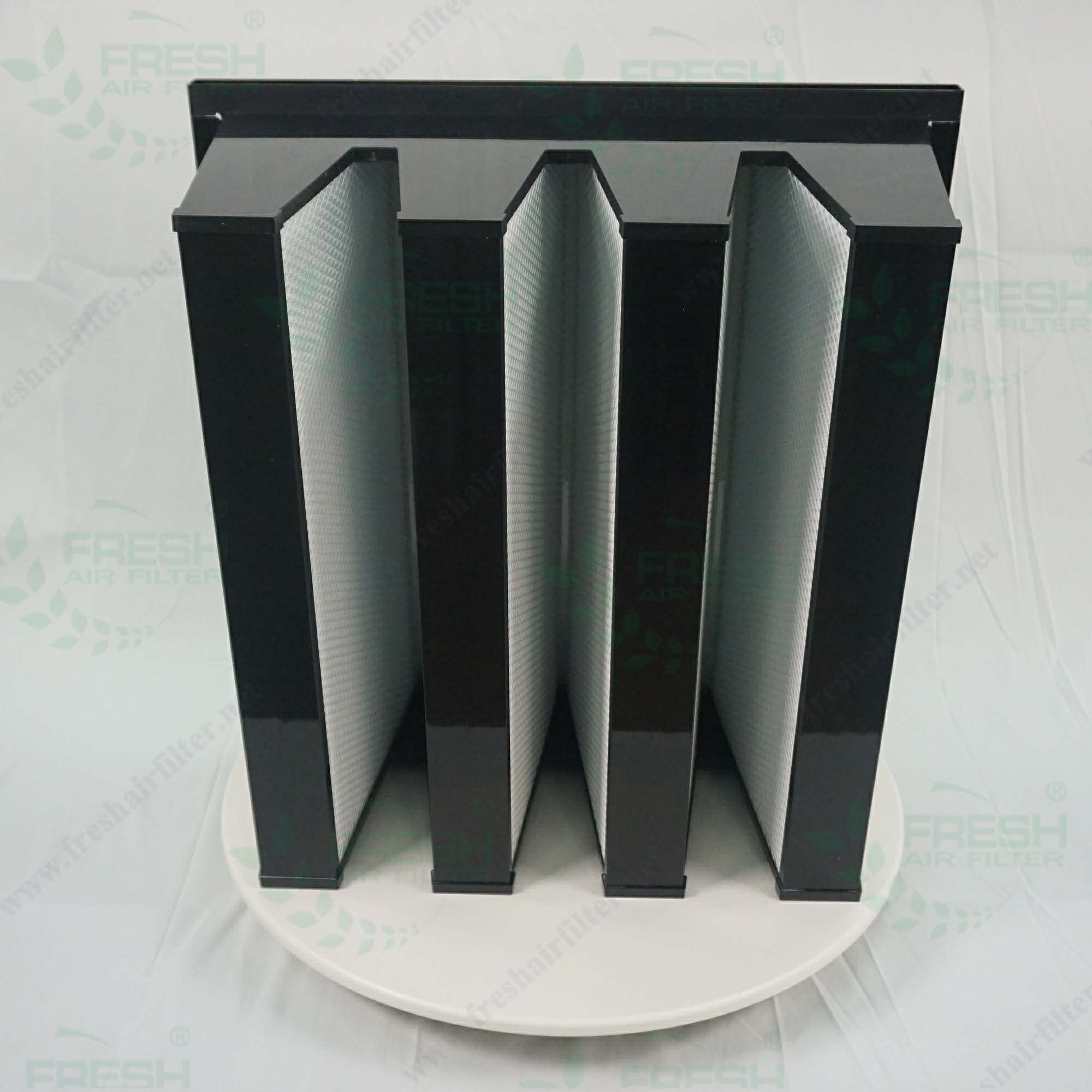

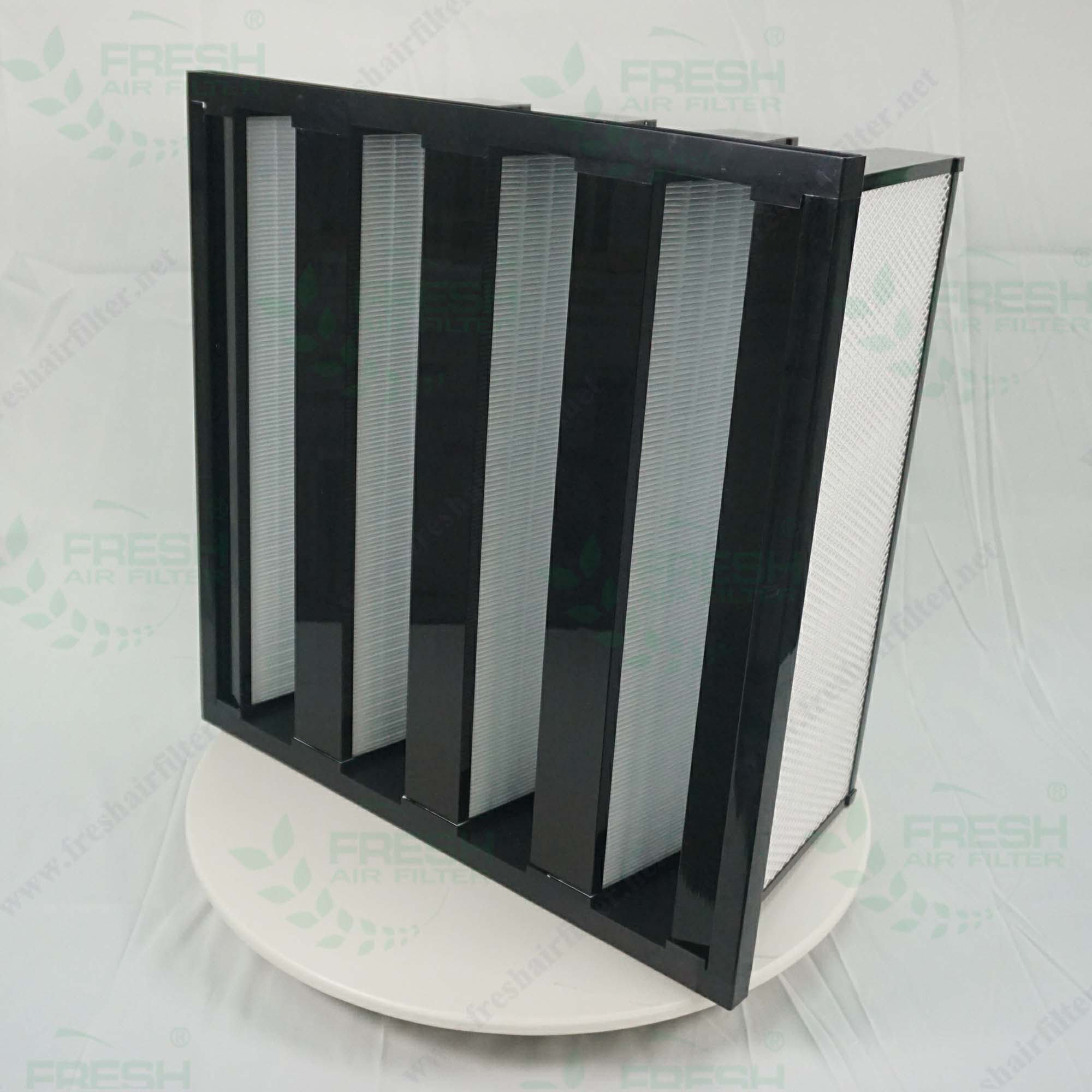

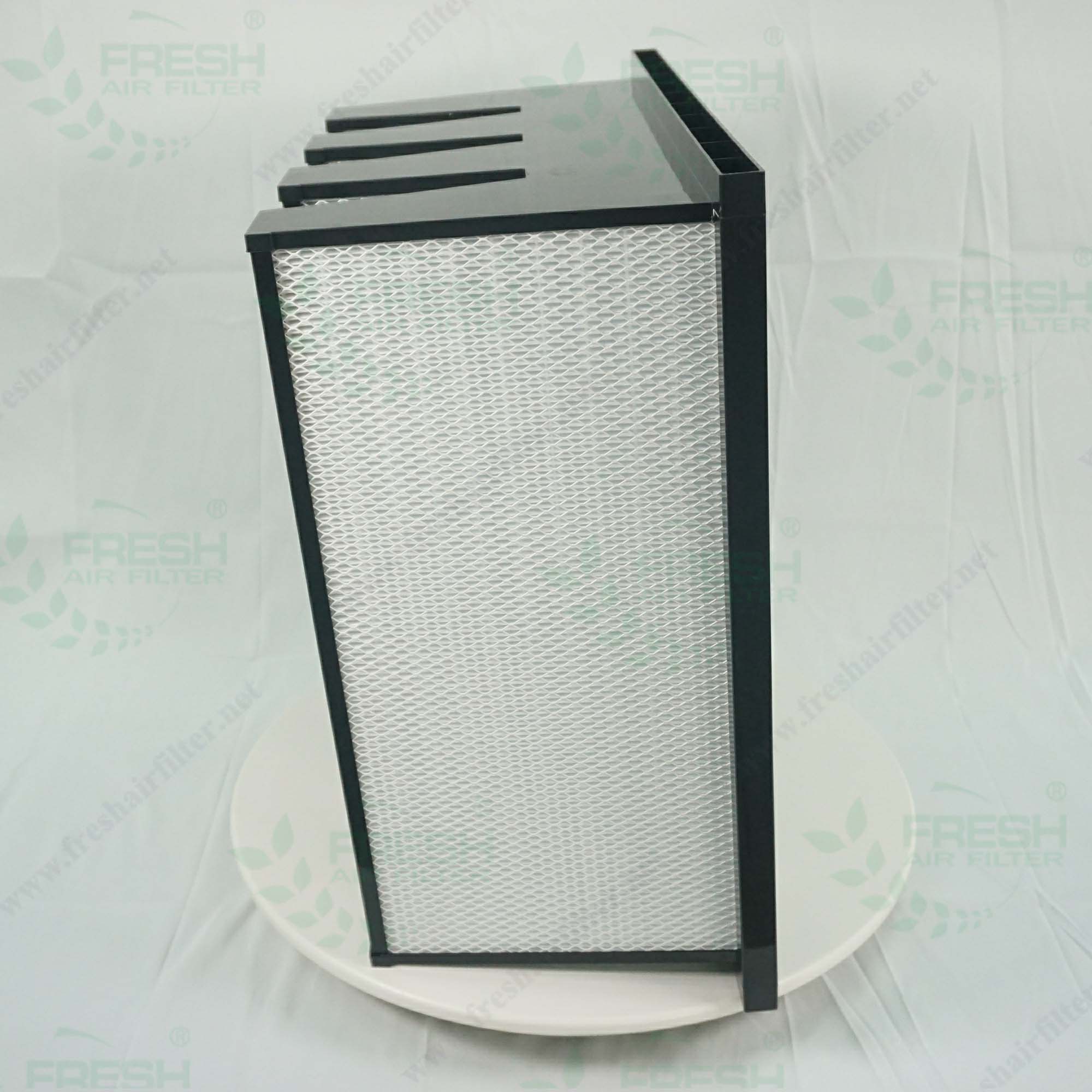

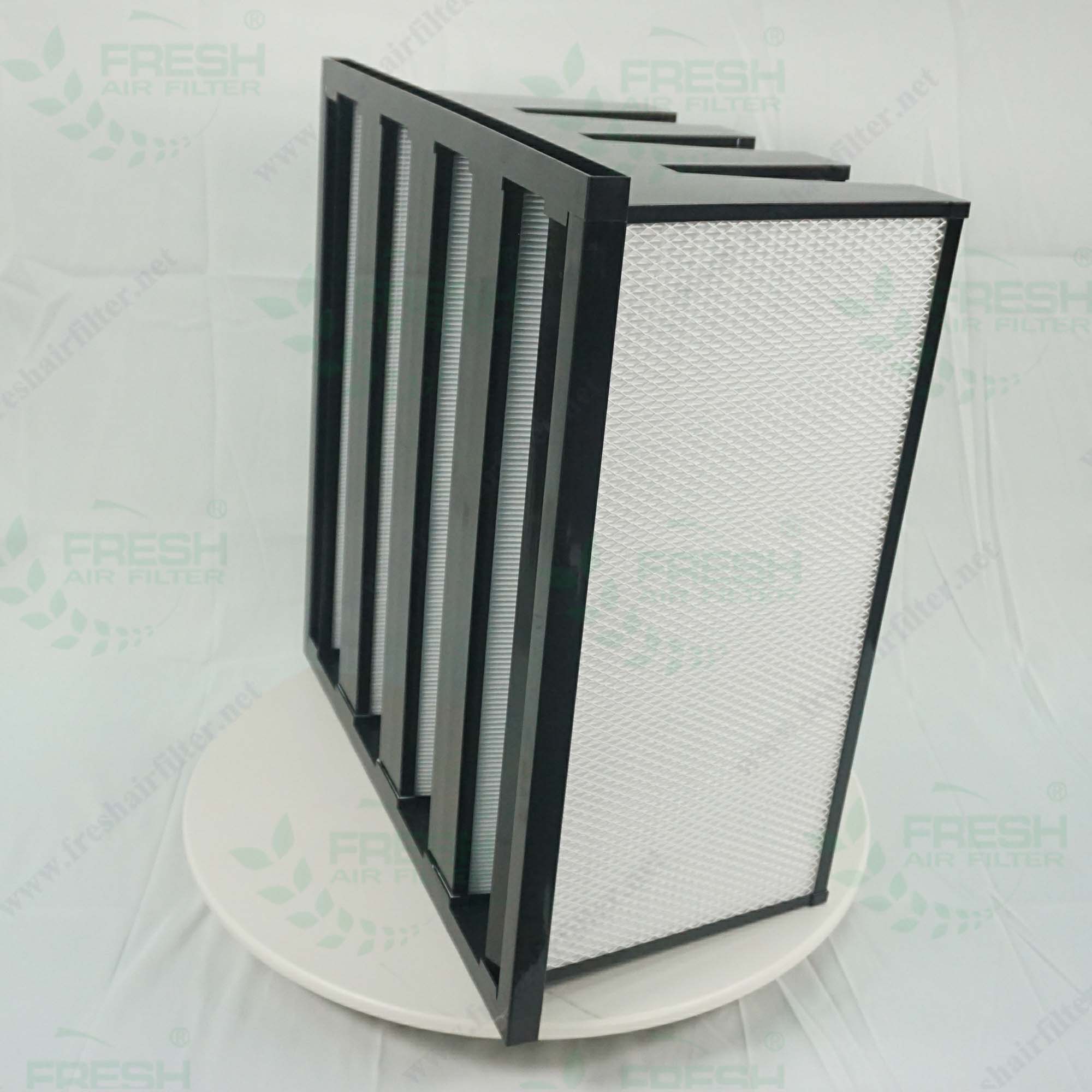

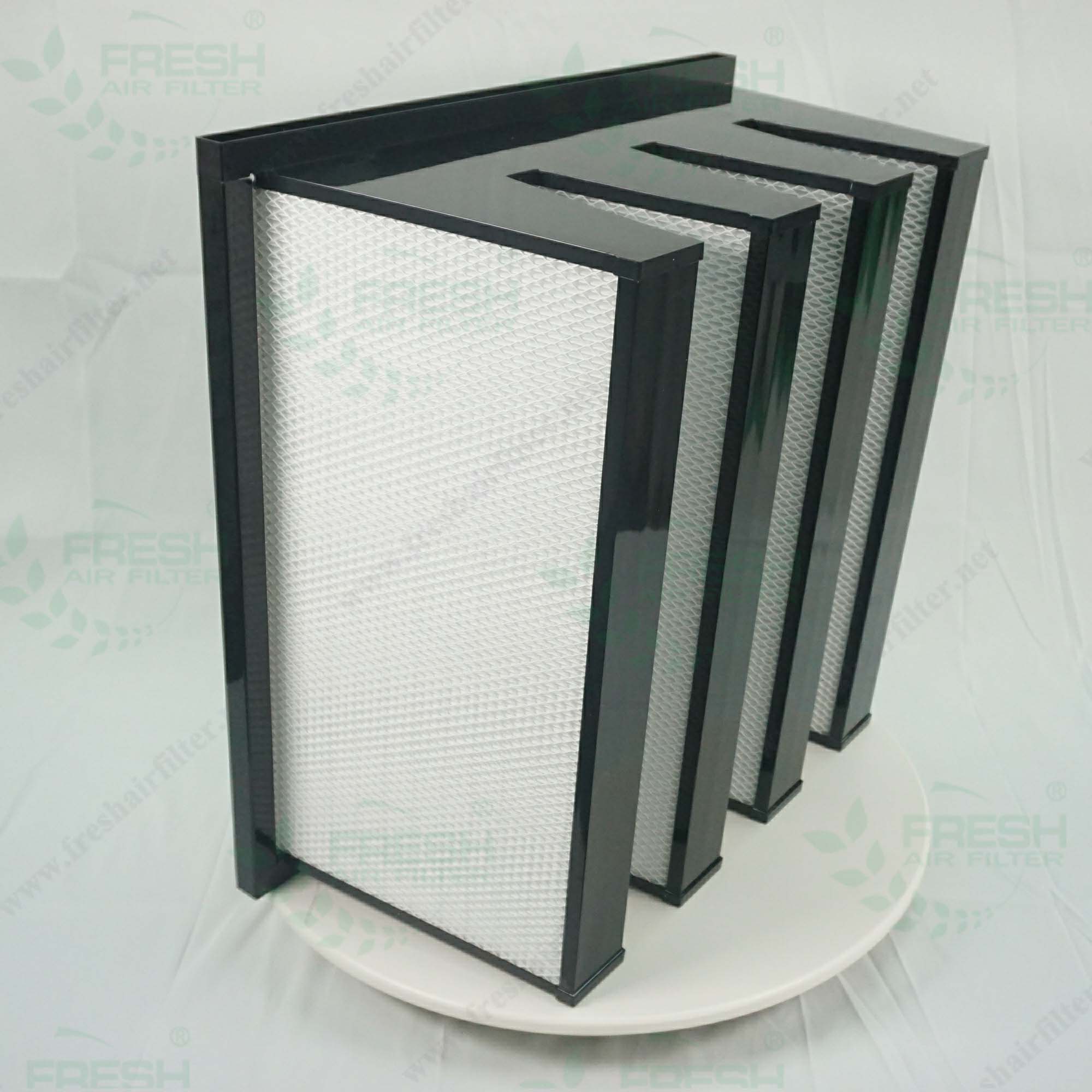

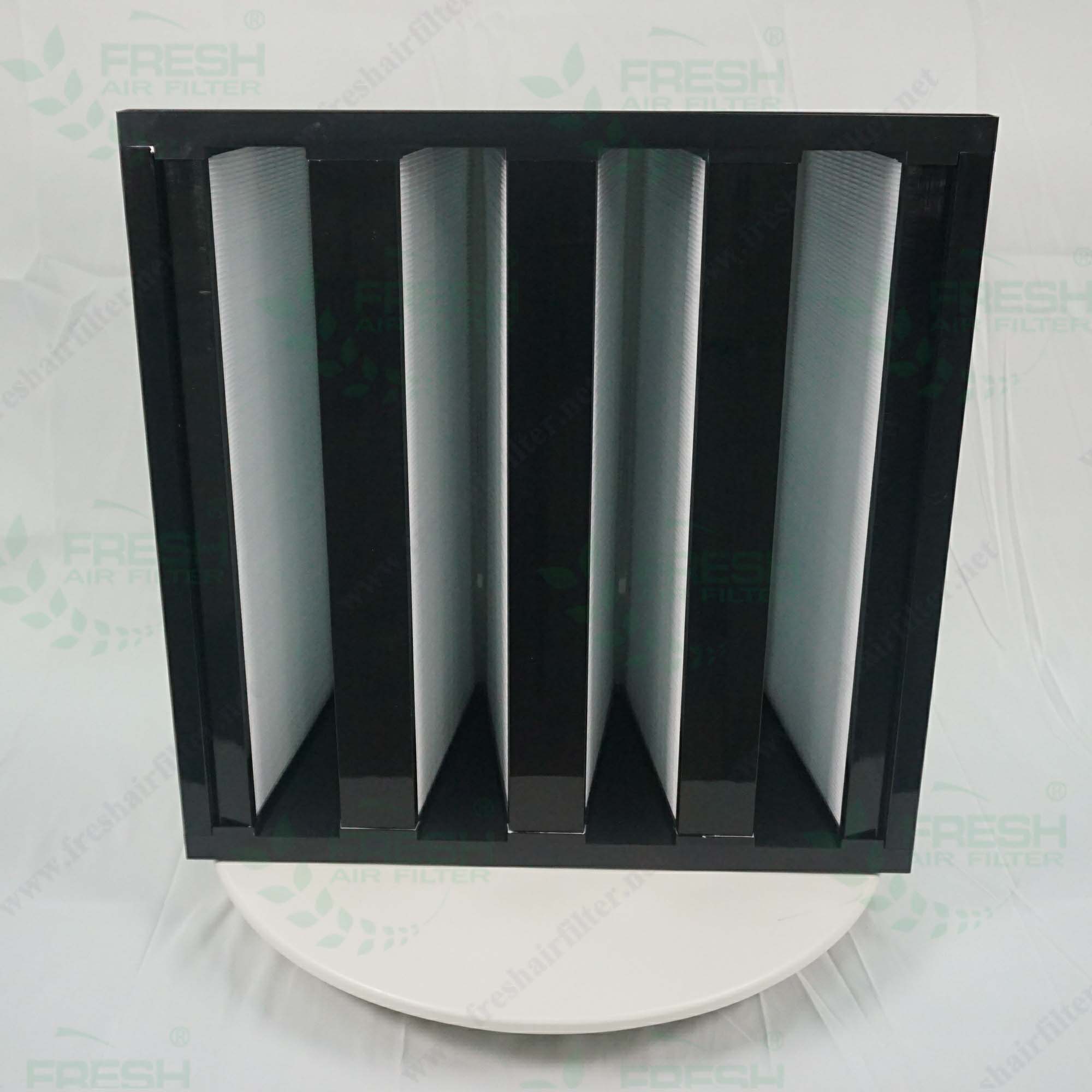

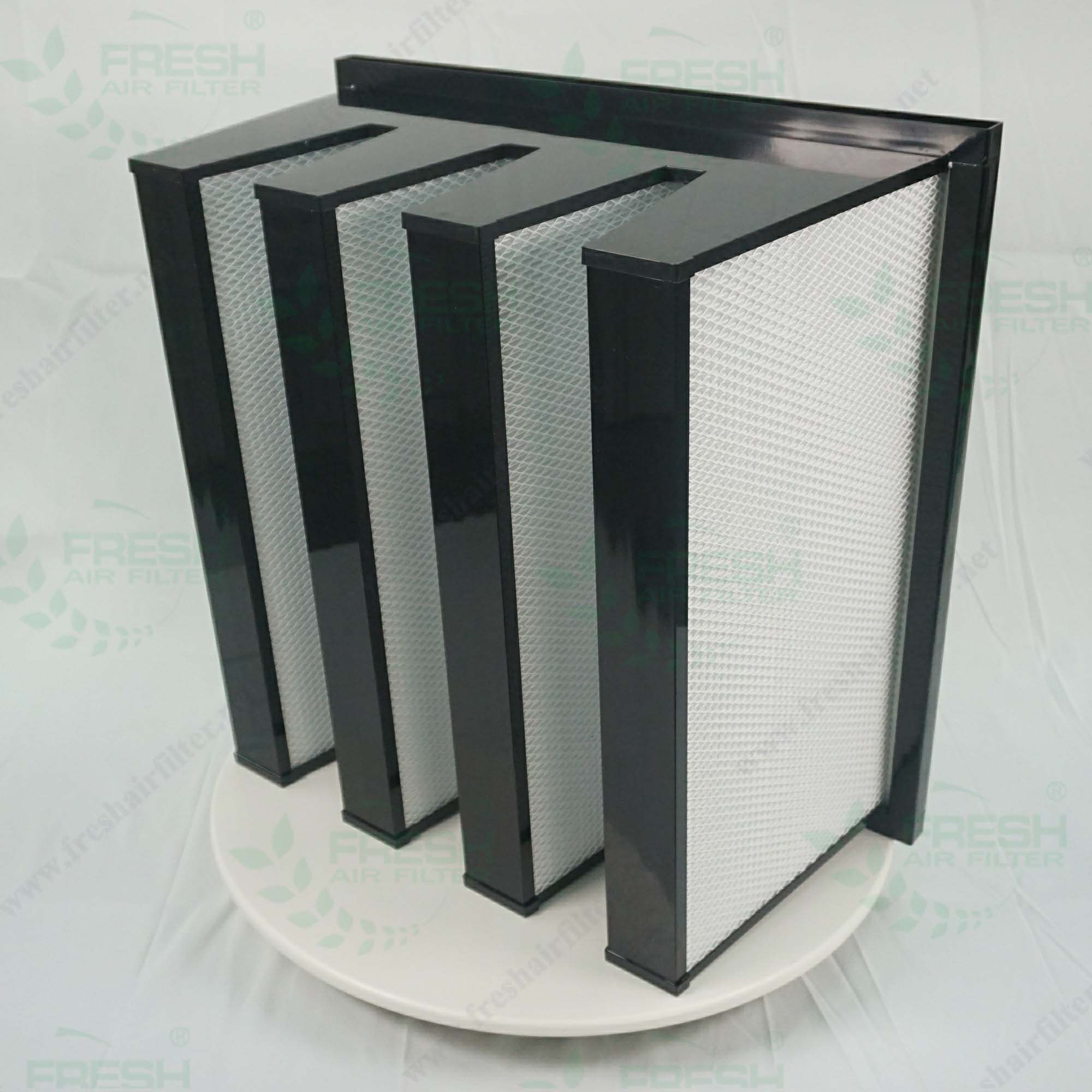

Product Real shot:
