High Temperature Resistant Air HEPA Filter
FRS-HT
Deep Pleated High-Temp Resistant HEPA Filter is available in a variety of efficiencies, including 99.9%, 99.99% and 99.999% on 0.1~0.3 micrometer particles, and is also available with online scanned factory certification.
High-Temp Resistant HEPA filters are used primarily in cleanrooms and clean zones, which require the very highest levels of contamination control. In particular, It has certain requirements for high temperature. The filter consists of water-proofed, fire-retardant fiberglass media formed into a series of pleats. Corrugated sheets of aluminum separate the pleats to permit maximum usage at minimum resistance. Gasket is available on the upstream, downstream, or both faces.
High-Temp Resistant HEPA filters are used primarily in cleanrooms and clean zones, which require the very highest levels of contamination control. In particular, It has certain requirements for high temperature. The filter consists of water-proofed, fire-retardant fiberglass media formed into a series of pleats. Corrugated sheets of aluminum separate the pleats to permit maximum usage at minimum resistance. Gasket is available on the upstream, downstream, or both faces.
Quantity
Deep Pleated High Temperature Resistants HEPA Filter
Feature:
* High efficiency.
* Low airflow velocity resistance.
* Large dust capture capacity.
* High temp resistance, long life span in 250-450ºC working condition.
Application:
Commercial and industrial ventilation systems, endfilter of air conditioning systems.
1) Clean room fresh air conditioning system, end filter of clean room.
2) End filter of ventilation with high fire-proof/high temp resistance working condition.
* High efficiency.
* Low airflow velocity resistance.
* Large dust capture capacity.
* High temp resistance, long life span in 250-450ºC working condition.
Application:
Commercial and industrial ventilation systems, endfilter of air conditioning systems.
1) Clean room fresh air conditioning system, end filter of clean room.
2) End filter of ventilation with high fire-proof/high temp resistance working condition.
3) Widely application in electronics, optics, semiconductor, coating, chemical, cosmetics, pharmacy, hospitals and automobile industries.
Material & Features:
1) Filter material: Fiberglass, high temp resistance fiberglass filter paper.
2) Separators: Corrugated Aluminum foil.
3) Outer frame : Stainless steel frame (Aluminum alloy or galvanized steel for your option).
4) Sealant glue : high temperature resistance glue.
5) Sealant strip: high temperature resistance glue.
Technical Parameters:
1) Filtration grade: H10,H11,H12,H13,H14(EN779)
2) Porosity: particles≥0.5μm,≥0.3μm
3) Filter Efficiency: 99%,99.9%,99.99%,99.999%(ASHRAE52.1-1992)
4) Humidity resistance: ≤100%RH
5) Resistance to high temperature: ≤250ºC,≤350ºC,≤450ºC
6) Final resistance: (suggested) ≤600Pa.
Technical Specification:
2) Separators: Corrugated Aluminum foil.
3) Outer frame : Stainless steel frame (Aluminum alloy or galvanized steel for your option).
4) Sealant glue : high temperature resistance glue.
5) Sealant strip: high temperature resistance glue.
Technical Parameters:
1) Filtration grade: H10,H11,H12,H13,H14(EN779)
2) Porosity: particles≥0.5μm,≥0.3μm
3) Filter Efficiency: 99%,99.9%,99.99%,99.999%(ASHRAE52.1-1992)
4) Humidity resistance: ≤100%RH
5) Resistance to high temperature: ≤250ºC,≤350ºC,≤450ºC
6) Final resistance: (suggested) ≤600Pa.
Technical Specification:
| Dimension(mm) | Rated air flow (m3/h) | Initial Pressure Drop (Pa) | Filtration efficiency (%) | ||
| W*H*D | 0.25m/s | 0.5m/s | 0.75m/s | ||
| 320*320*220 | 400 | ≤120 | ≤220 | ≤240 | 99% 99.9% 99.99% 99.999% |
| 484*484*220 | 1000 | ||||
| 610*610*150 | 1000 | ||||
| 630*630*220 | 1500 | ||||
| 610*610*292 | 2000 | ||||
| Remarks: other specification to be customized | |||||

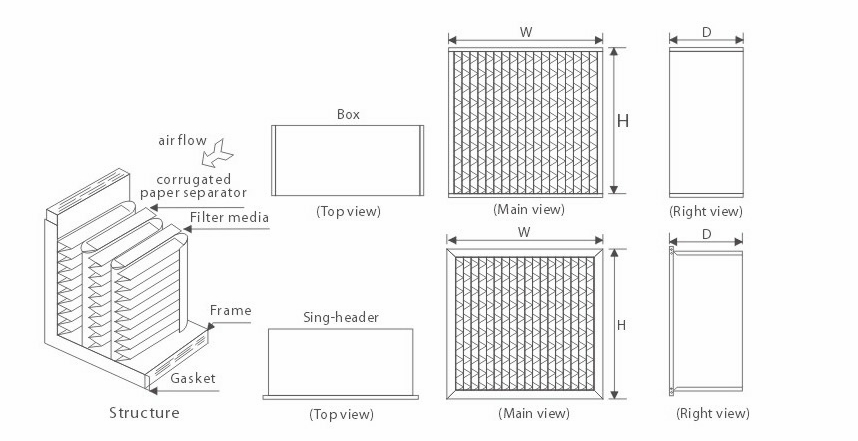

Product Structurer:
